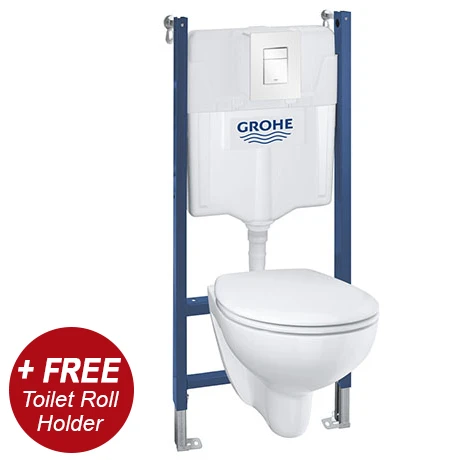

Grohe Solido Bau / Skate Cosmo Complete WC 5 in 1 Pack + FREE TOILET ROLL HOLDER

A 1 box solution – the Solido Bau WC pack is a complete set consisting of support frame and cistern, dual flush plate, wall hung pan and soft close seat. The steel support frame gives you the freedom to design your ultimate bathroom by providing a secure and quick method of installing WCs. Each frame comes pre-assembled with sanitary ware fixings and is subject to stringent testing.

Pan Details

• Height: 410mm
• Width: 304 / 368mm
• Projection: 531mm
• Brand: Grohe
• Range: Bau Ceramic
• Type: Wall hung WC pan
• Material: Vitreous china
• Colour: White
• Easy-clean rimless technology

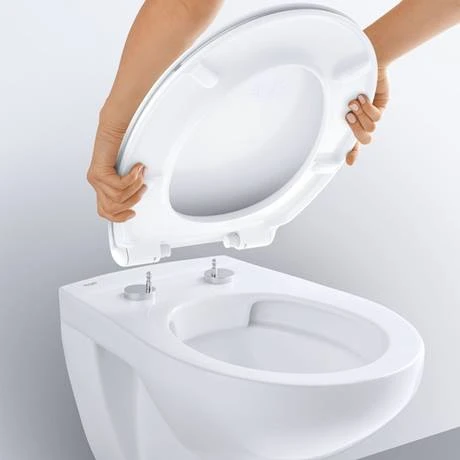

• Supplied with WC seat with quick release action and Soft Close feature

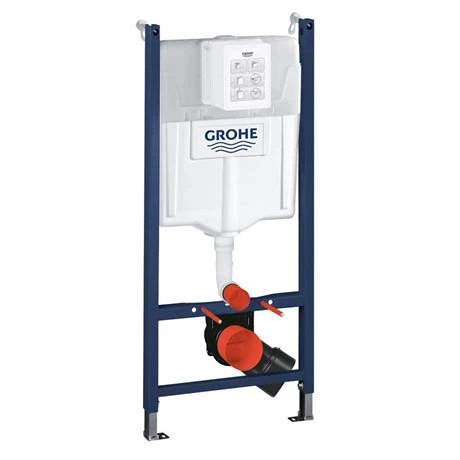

Frame Details

• Height: 1135mm
• Width: 500mm
• Brand: Grohe
• Steel frame for dry lining fixed object connections
• Fastening material with quick adjustment and height safety device
• 2 WC holding bolts
• Ceramic fixing Screw spacing 180/230 mm
• Drain elbow Ø 90 mm
• depth adjustable
• reducer Ø 90/110 mm
• inlet and outlet
• cistern GD 2, 6-9l
• factory setting 6l and 3l
• pneumatic drain valve with two functions:
• Set or start & stop
• water connection from left / right / rear or top Faucet group

Alpine White Flush Plate Details

• Width: 156mm
• Height: 197mm
• Depth: 10mm
• Brand: Grohe
• Range: Skate Cosmopolitan
• Type: WC Wall Flush Plate
• Finish: Alpine White
• Material: ABS
• For dual flush or start & stop actuation
• For vertical and horizontal installation
• For pneumatic drop valve AV1

5 Year Guarantee

Comprises

Bau Rimless Ceramic WC
Soft close and quick release seat
Even flush plate (Skate Cosmopolitan) – Alpine White
Solido Frame 1.13m / 3/6L Cistern

Wall brackets and noise protection included
