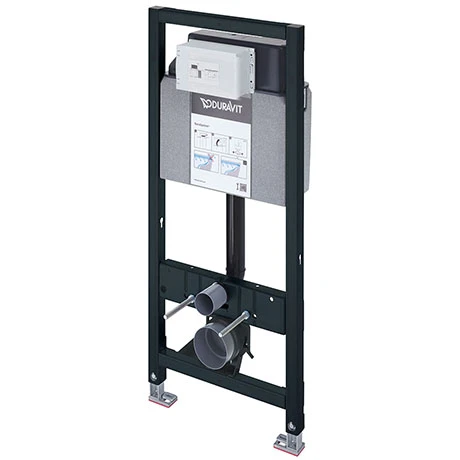

Duravit DuraSystem Basic 1148mm Toilet Fixing Frame – WD1020000080

The self-supporting DuraSystem installation frame offers the perfect technical starting point. The largely prefabricated installation frame enable rapid installation, and the open system ensures the utmost flexibility for laying any supply
and drainage pipes.

Product Details

• Brand: Duravit
• Product Code: WD1020000080
• Dimensions: (H)1148 x (W)500 x (D)155mm
• Self-supporting
• For drywall construction
• Suitable for panelling with plasterboards
• Powder-coated frame
• Suitable for pans with a projection of less than 625mm
• Adjustable feet 0–240 mm
• Mechanical front actuation
• Tool-free assembly of the transparent service opening plate
• Concealed cistern CE tested in accordance with EN 14055
• Maximum flush volume 9l
• Marking of filling height
• Dual flush technology
• Adjustable flush volume
• Insulated against condensation
• Throttle for adjustment of the flushing flow
• Scope of delivery
• PE-wall-mounted toilet connection bend DN 90/90
• PE-wall-mounted toilet connection set DN 90
• Wall-mounted toilet fastening set M12
• Mounting accessoires for lightweight construction
• PE-wall-mounted toilet reduction DN 90/110 for outlet bend
• 2 cover caps
• Pre-installed toilet frame for wall-mounted toilet

5 Year Guarantee

Images are for illustrative purposes only
